FURTHER PARTICLE SIZERS
Powered by Bioz
Each ANALYSETTE 28 ImageSizer with USB-interface is delivered with a computer* with already installed ImageSizing-Software ISS, monitor, keyboard and mouse.
*Except deliveries to CIS countries
Choose according to your measuring task dry or wet measurement!
For dry measurement please order lenses according to the desired measuring range.
For wet measurement please select one of the wet dispersion units, lenses according to the desired measuring range and if required ultrasonic box separately.
Lenses with the same magnification are identical for both dry and wet measurements and can be used for both measurement methods.
For representative sample division - the foundation of any precise analysis - we recommend the
Rotary Cone Sample Divider LABORETTE 27
Maintenance and Recalibration of your Particle Sizer on request. Colour ink jet printer and laser printer on request.
Lenses for dry measurement of powders and bulk solids
Choose according to your measurement task the right lens!

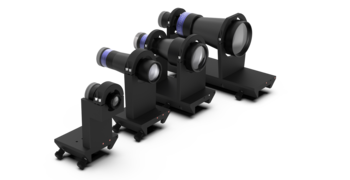

In order to use the ANALYSETTE 28 ImageSizer you will need at least one telecentric lens. Four telecentric lenses with different measuring ranges are available. Order the desired lenses separately according to the measuring task. They can all be retrofitted at any time, and are easy to replace.
Lenses with holder, feeder, funnel and incl. accessory case with FRITSCH test powder, cleaning brush, dust blower and much more

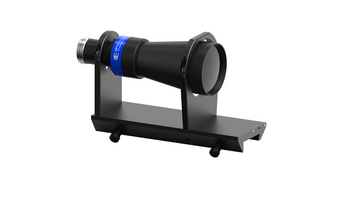

Telecentric lens – 0.157x with feeder 50 mm and sample funnel 2000 ml (measuring range ~ 90 µm – 20 mm, depth of field ~ 27 mm), for dry measurement of powders and bulk solids.

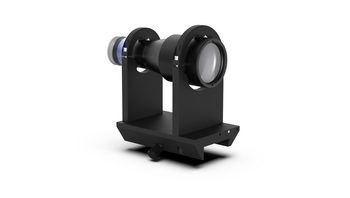

Telecentric lens – 0.243x with feeder 50 mm and sample funnel 2000 ml (measuring range ~ 60 µm – 14.5 mm, depth of field ~ 11 mm), for dry measurement of powders and bulk solids.

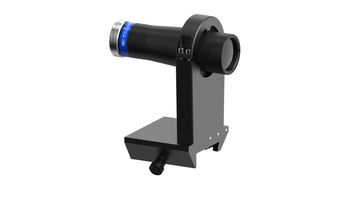

Telecentric lens – 0.35x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 40 µm – 9 mm, depth of field ~ 5 mm), for dry measurement of powders and bulk solids.
This telecentric lens - 0.35x can also be used with the wet dispersion units A-28 for wet measurement of suspensions and emulsions (measuring range ~ 40 μm - 3 mm, depth of field ~ 5 mm).

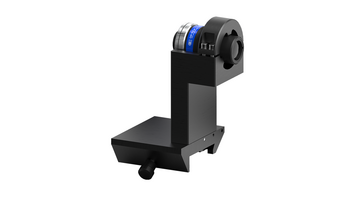

Telecentric lens – 0.735x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 20 µm – 4.5 mm, depth of field ~ 1.2 mm), for dry measurement of powders and bulk solids.
This telecentric lens - 0.735x can also be used with the wet dispersion units A-28 for wet measurement of suspensions and emulsions (measuring range ~ 20 μm - 2 mm, depth of field ~ 1.2 mm).
Accessories for combining the A-28 with the A-22

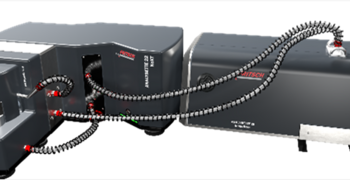

Combine the dynamic image analysis of the A-28 with the static light scattering of the A-22 with a supplement set.
Supplement sets

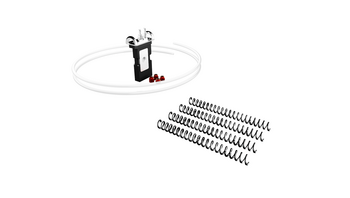

Supplement set for combination of the A-22 NeXT wet dispersion unit 22.9200.00 with the A-28
Consisting of wet measuring cell A-28 and hoses, additionally required:
- Measuring unit A-22 NeXT Nano 22.9040.00 or Micro 22.9000.00
- Wet dispersion unit 22.9200.00

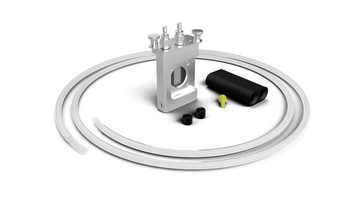

Supplement set for combination of the A-22 NeXT wet dispersion unit 22.9200.00 with conversion kit extended with the A-28
Consisting of wet measuring cell A-28 and hoses, additionally required:
- Measuring unit A-22 NeXT Nano 22.9040.00 or Micro 22.9000.00
- Wet dispersion unit 22.9200.00 with conversion kit extended for extreme chemical resistance 22.9287.00 resp. 22.9288.00
Dispersion units and lenses for wet measuring of suspensions and emulsions
Select one wet dispersion unit and according to your measurement task the right lens and accessories!
Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids. Select an ultrasonic box if you frequently measure sample material that tends to agglomerate.
Wet dispersion units and Ultrasonic box
Wet dispersion unit incl. flow measuring cell for automatic dispersion, volume 150-500 ml - suitable for dispersion liquids like water, alcohol and many organic solvents, incl. accessory case with FRITSCH test powder, cleaning sand, tenside and much more.
A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.
All parts inside the wet dispersion unit, which come into contact with the dispersion medium are made of high-quality stainless steel 316L, PTFE, FFKM, FEP, POM, BK7 glass and FKM. The connection hoses and the drain hose are made of silicone.
If you are working with extremely aggressive chemical dispersion liquids, order the wet dispersion unit EXTENDED for extreme chemical resistance with article number 28.2700.00. A list providing an overview of chemicals can be downloaded here.
Read details about our wet dispersion unit
Wet dispersion unit EXTENDED incl. flow measuring cell for automatic dispersion, volume 150-500 ml - suitable for extremely aggressive chemical dispersion liquids, incl. accessory case with FRITSCH test powder, cleaning sand, tenside and much more.
A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.
All parts inside the wet dispersion unit EXTENDED, which come into contact with the dispersion medium are made of high-quality stainless steel 316L, PTFE, FFKM, FEP and BK7 glass. The connection hoses are made of silicone, inside of hoses made of FEP and the drain hose is made of TPE. For dispersion liquids, such as water, alcohol or most organic solvents, wet dispersion, article number 28.2600.00, is sufficient. A list providing an overview of chemicals can be downloaded here.
Read details about our wet dispersion unit
for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 200-240 V/1~, 50-60 Hz, 60 Watt
If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.
All parts inside the ultrasonic box, which come into contact with the dispersion medium are made of high-quality stainless steel 316L and FFKM.
for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 100-120 V/1~, 50-60 Hz, 60 Watt
If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.
All parts inside the ultrasonic box, which come into contact with the dispersion medium are made of high-quality stainless steel 316L and FFKM.
Lenses with holder
Telecentric lens – 0.35x (measuring range ~ 40 µm – 3 mm, depth of field ~ 5 mm), for wet measurement of suspensions and bulk emulsions.
This telecentric lens - 0.35x can also be used for dry measurement of powders and bulk solids with the Particle Analyser A-28 (measuring range ~ 40 μm – 9 mm, depth of field ~ 5 mm).
For dry measurement, a feeder 20 mm, a sample funnel 250 ml and an accessory case are also necessary, which can be ordered with, if required.
Telecentric lens – 0.735x (measuring range ~ 20 µm – 2 mm, depth of field ~1.2 mm), for wet measurement of suspensions and bulk emulsions.
This telecentric lens - 0.735x can also be used for dry measurement of powders and bulk solids with the Particle Analyser A-28 (measuring range ~ 20 μm – 4.5 mm, depth of field ~ 1.2 mm).
For dry measurement, a feeder 20 mm, a sample funnel 250 ml and an accessory case are also necessary, which can be ordered with, if required.
Telecentric lens – 1.333x (measuring range ~ 5 µm – 1 mm, depth of field ~ 0.5 mm), for wet measurement of suspensions and bulk emulsions.
Accessories for wet dispersion units
for covering the sample bath of the wet dispersion unit.
The cover provides safe splash protection during filling, dispersion and rinsing.
The pump (external) for filling the wet dispersion units with water is perfect in case no suitable media connection is available.
The IPA-capable pump (external) for filling the wet dispersion units with isopropanol or water is perfect if no suitable media connection is available
Spare parts for wet dispersion units
1 piece replacement measuring cell glass 4 mm for inserting into the wet measuring cell of the wet dispersion unit 28.2600.00.
Easy cleaning and exchange of the measuring cell
The measuring cell for the ANALYSETTE 28 ImageSizer is simply inserted from the front into the instrument as a practical cartridge and can be opened without tools with an eccentric lock. Its cleaning is quite convenient by an easily re-insertable outer seal. And also the exchange of the measuring cell glasses can be done any time completely uncomplicated.
Use the hose set standard for wet dispersion unit 28.2600.00.
Further hoses and seals on request.
Our hose set standard for is used for wet dispersion unit 28.2600.00 in combination with ultrasonic box.
Further hoses and seals on request.
Instrument online training / FRITSCH reference materials / Accessories for certified calibration and certification
Individual instrument online trainings are available. To inspect your Particle Sizer to ensure proper function FRITSCH reference materials are available. For certified calibration of the Particle Sizer ANALYSETTE 28 ImageSizer, two different calibration plates are offered. Please choose the appropriate calibration plate according to the lens used. Also certifaction forms can be ordered.
online training, reference materials, calibration plates and certification
Use the individual instrument training online for initial instruction and practical training in instrument operation or clarification of individual application questions*
* not eligible for discounts
The FRITSCH-test powder F-70, 10 - 600 µm is ideal for:
Calibration of the Laser Particle Sizers ANALYSETTE 22 for dry dispersion within the framework of a test equipment monitoring system as per ISO 13320.
Calibration of the Particle Sizer ANALYSETTE 28 ImageSizer for wet measurement with telecentric lenses – 0.735x and 1.333x and for dry measurement with telecentric lenses 0.35x and 0.735x within the framework of a test equipment monitoring system as per ISO 13322-2.
The FRITSCH-test powder F-70, 10 - 600 µm is the cost-efficient alternative (non-certified reference materials) for regular inspection of the Laser Particle Sizers ANALYSETTE 22 and the Particle Sizer ANALYSETTE 28 ImageSizer.
The FRITSCH-test powder F-70, 10 - 600 µm is delivered in a handy 150 g bottle.
for calibration of the Particle Sizer ANALYSETTE 28 ImageSizer for dry measurement with telecentric lenses – 0.157x, 0.243x and 0.35x within the framework of a test equipment monitoring system as per ISO 13322-2.
The FRITSCH-test powder F-16, 1 - 2 mm is the cost-efficient alternative (non-certified reference materials) for regular inspection of the Particle Sizer ANALYSETTE 28 ImageSizer and is delivered in a handy 100 g bottle.

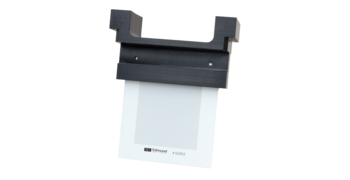

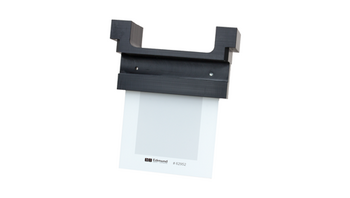

Calibration plate with 0.5 mm dots with certificate for telecentric lenses – 0.157x, 0.243x and 0.35x.
Calibration plate with 0.125 mm dots with certificate for telecentric lenses – 0.735x and 1.333x

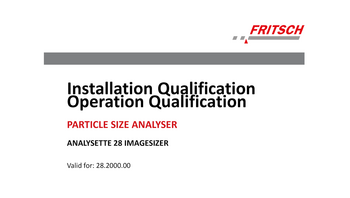

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Particle Sizer ANALYSETTE 28 ImageSizer.
